KG brand is over 50years old globally renowned for high quality and reliability and a quality-price balance that makes customers more competitive, productive, and profitable. In particular, KG’s quality control practices are industry-leading and ensure consistent, reliable products at all times. KG’s extensive manufacturing network also ensures business resiliency and a quick ability to manufacturing fit-for-purpose bearings based on customer needs.
KG
Manufacturing Quality
India that are all regularly audited and inspected by dedicated offices in
India and China.
KG bearings have the highest quality in the “economical” bearing segment and leverage ISO:9001 and IATF 16949:2016 certified processes/production facilities to ensure minimal product rejection and applicability in even the most hazardous applications. Our factories are equipped with advanced machineries to ensure manufacturing set up and tolerances as per quality bandwidth.
KG has a solution for all your needs
KG has five brand variants which cater to distinct market segments based on the quality they require
-
KG Blue
-
KG Colorful
-
KG Ultra
-
KG P2P
-
KG-E
KG Blue
Types
- Deep Groove Ball Bearings
- Miniature Ball Bearings
- Angular Contact Ball Bearings
- Cylindrical Roller Bearings
- Tapered Roller Bearings
- Spherical Bearings
- Thrust Roller Bearings
- Pillow Block Bearings
- Adapter Sleeves
- Automotive Bearings
Product Details
Marking: “KG” + Full Bearing no. on the inner ring face for 2RS & ZZ types and on the outer ring face for other types
Seal: Red or Black (occasionally)
Shield: SPCC Yellow
Bearings perfect for the aftermarket due to good quality, and low price
- Precision Class :
- P0, ABEC1
- Raw Material:
- GCr15/SAE 52100
- Roller Grade:
- G10 (Material Grade)
- Tolerance:
- P0 standard
- Grease:
- Hangu 2
- DGBB:
- Z1V1
-
Raceway Track
Roughness:
- 0.12-0.2μm
-
OD Bore
Roughness:
- 0.5-0.6μm
- Roller Grouping:
- 10-15μm (as per Radial Clearance)
KG Colorful
Types
- Deep Groove Ball Bearings
- Angular Contact Ball Bearings
- Cylindrical Roller Bearings
- Tapered Roller Bearings
- Spherical Bearings
- Pillow Block Bearings
- Automotive Bearings
- Miniature Ball Bearings
Product Details
- Precision Class :
- P0, ABEC1
- Raw Material:
- GCr15/SAE 52100
- Roller Grade:
- G10
- Tolerance:
- P0 standard
- Grease:
- Hangu 2
- DGBB:
- Z2V1
-
Raceway Track
Roughness:
- 0.12-0.2μm
-
OD Bore
Roughness:
- 0.5-0.6μm
- Roller Grouping:
- 10-15μm (as per Radial Clearance)
KG Ultra
Types
- Spherical Roller Bearings
- Self Aligning Ball Bearings
- Cylindrical Roller Bearings
- Thrust Bearings
- Tapered Roller Bearings
- Four-Row Cylindrical Roller Bearings
- Double Row Tapered Roller Bearings
- Four-Row Tapered Roller Bearings
- Plummer Blocks
- Heavy-weight Pillow Blocks
- Adapter Sleeves
Product Details
Marking: “KG Ultra” + Full Bearing no. on the outer ring face
Wrapping: Wrapped with a plastic sheet, VCI paper, and waterproof tape to protect from rust and ensure long lasting storage ability
Packaging: Strong, durable, plywood packaging to protect bearings in transport and storage; For bearings lighter than 35kg, we use the KGC packaging
- Precision Class :
- P0, ABEC1
- Speciality :
- Lubrication groove is wider
- Roller :
- Dimple roller to distinguish
- Tolerance :
- Manufacturing tolerance & set up of P0, P6
- Production :
- Controlled in range of P0, P6
- Hardness :
- Throughout uniform hardness
- Load Ratings :
- As per application
- Roller Grouping :
- 5-10μm (as per Radial Clearance)
KG P2P
Types
- Deep Groove Ball Bearings
- Tapered Roller Bearings
- Automotive Bearings
Product Details
Seal: Black
Shield: Silver
- Precision Class :
- P6, ABEC3
- Raw Material :
- GCr15/SAE 52100
- Ball Grade :
- G10
- Tolerance :
- P6 standard
- Grease :
- Kyodo Yushi (Japan), Shell Alvania RL3
- DGBB Quality :
- Z3V2 or higher for smaller bearings; Z2V2 for larger bearings
- Hardness :
-
+/-2 HRC at diff. point
of rings
KG-E
Types
- Radial Ball Bearings
Product Details
Marking: “KG-E” + Full Bearing No. with complete suffixes + Factory, Grease, and Quality Codes on seal/shield for 2RS & ZZ types and on outer ring face for open type
Seal: Black
Shield: Silver
- Precision Class :
- P6, ABEC3
- Raw Material :
- GCr15/SAE 52100
- Ball Grade :
- G10
- Tolerance :
- P6 or higher
- Grease :
- Kyodo Yushi (Japan)
- DGBB Quality :
- Z3V3, Z4V4
- Hardness :
-
+/-2 HRC at diff. point
of rings
KG Blue
KG Blue
Types
- Deep Groove Ball Bearings
- Miniature Ball Bearings
- Angular Contact Ball Bearings
- Cylindrical Roller Bearings
- Tapered Roller Bearings
- Spherical Bearings
- Thrust Roller Bearings
- Pillow Block Bearings
- Adapter Sleeves
- Automotive Bearings
Product Details
Marking: “KG” + Full Bearing no. on the inner ring face for 2RS & ZZ types and on the outer ring face for other types
Seal: Red or Black (occasionally)
Shield: SPCC Yellow
Bearings perfect for the aftermarket due to good quality, and low price
- Precision Class :
- P0, ABEC1
- Raw Material:
- GCr15/SAE 52100
- Roller Grade:
- G10 (Material Grade)
- Tolerance:
- P0 standard
- Grease:
- Hangu 2
- DGBB:
- Z1V1
-
Raceway Track
Roughness:
- 0.12-0.2μm
-
OD Bore
Roughness:
- 0.5-0.6μm
- Roller Grouping:
- 10-15μm (as per Radial Clearance)
KG Colorful
KG Colorful
Types
- Deep Groove Ball Bearings
- Angular Contact Ball Bearings
- Cylindrical Roller Bearings
- Tapered Roller Bearings
- Spherical Bearings
- Pillow Block Bearings
- Automotive Bearings
- Miniature Ball Bearings
Product Details
- Precision Class :
- P0, ABEC1
- Raw Material:
- GCr15/SAE 52100
- Roller Grade:
- G10
- Tolerance:
- P0 standard
- Grease:
- Hangu 2
- DGBB:
- Z2V1
-
Raceway Track
Roughness:
- 0.12-0.2μm
-
OD Bore
Roughness:
- 0.5-0.6μm
- Roller Grouping:
- 10-15μm (as per Radial Clearance)
KG Ultra
KG Ultra
Types
- Spherical Roller Bearings
- Self Aligning Ball Bearings
- Cylindrical Roller Bearings
- Thrust Bearings
- Tapered Roller Bearings
- Four-Row Cylindrical Roller Bearings
- Double Row Tapered Roller Bearings
- Four-Row Tapered Roller Bearings
- Plummer Blocks
- Heavy-weight Pillow Blocks
- Adapter Sleeves
Product Details
Marking: “KG Ultra” + Full Bearing no. on the outer ring face
Wrapping: Wrapped with a plastic sheet, VCI paper, and waterproof tape to protect from rust and ensure long lasting storage ability
Packaging: Strong, durable, plywood packaging to protect bearings in transport and storage; For bearings lighter than 35kg, we use the KGC packaging
- Precision Class :
- P0, ABEC1
- Speciality :
- Lubrication groove is wider
- Roller :
- Dimple roller to distinguish
- Tolerance :
- Manufacturing tolerance & set up of P0, P6
- Production :
- Controlled in range of P0, P6
- Hardness :
- Throughout uniform hardness
- Load Ratings :
- As per application
- Roller Grouping :
- 5-10μm (as per Radial Clearance)
KGTS
KGTS
Made in India bearings with high precision (P6) to improve longevity and durability
Engineered with a guaranteed lifespan of 80,000 KM
Premium-quality solutions catering to a full range of European, American and Asian trucks
Maximum reliability through 100% quality checks, including a test certificate
Enhanced product protection by using high-quality & eco-friendly packaging material
Competitive pricing and strong stock in Dubai
KG Truck Solutions are built to help truck and fleet owners be more competitive, productive, and profitable.
- Precision Class :
- P6, ABEC3
- Raw Material:
- SAE 52100
- Tolerance:
- P6 or higher
- Grease:
- BECHEM (-30° TO 180°)
- Hardness:
- +/-4 HRC at diff, point of rings
KG P2P
KG P2P
Types
- Deep Groove Ball Bearings
- Tapered Roller Bearings
- Automotive Bearings
Product Details
Seal: Black
Shield: Silver
- Precision Class :
- P6, ABEC3
- Raw Material :
- GCr15/SAE 52100
- Ball Grade :
- G10
- Tolerance :
- P6 standard
- Grease :
- Kyodo Yushi (Japan), Shell Alvania RL3
- DGBB Quality :
- Z3V2 or higher for smaller bearings; Z2V2 for larger bearings
- Hardness :
-
+/-2 HRC at diff. point
of rings
Why KG is the preferred choice for moving the world
UNMATCHED QUALITY
FOR CONSISTENCY AND RELIABILITY IN ALL APPLICATIONS
FOR CONSISTENCY AND RELIABILITY IN ALL APPLICATIONS
1
LEADING QUALITY
CONTROL PRACTICES
3
TOP QUALITY
MATERIALS
2
HIGH MANUFACTURING
QUALITY
4
CONSISTENCY AND
RELIABILITY
FOR CONSISTENCY AND RELIABILITY IN ALL APPLICATIONS
1
LEADING QUALITY
CONTROL PRACTICES
2
HIGH MANUFACTURING
QUALITY
3
TOP QUALITY
MATERIALS
4
CONSISTENCY AND
RELIABILITY

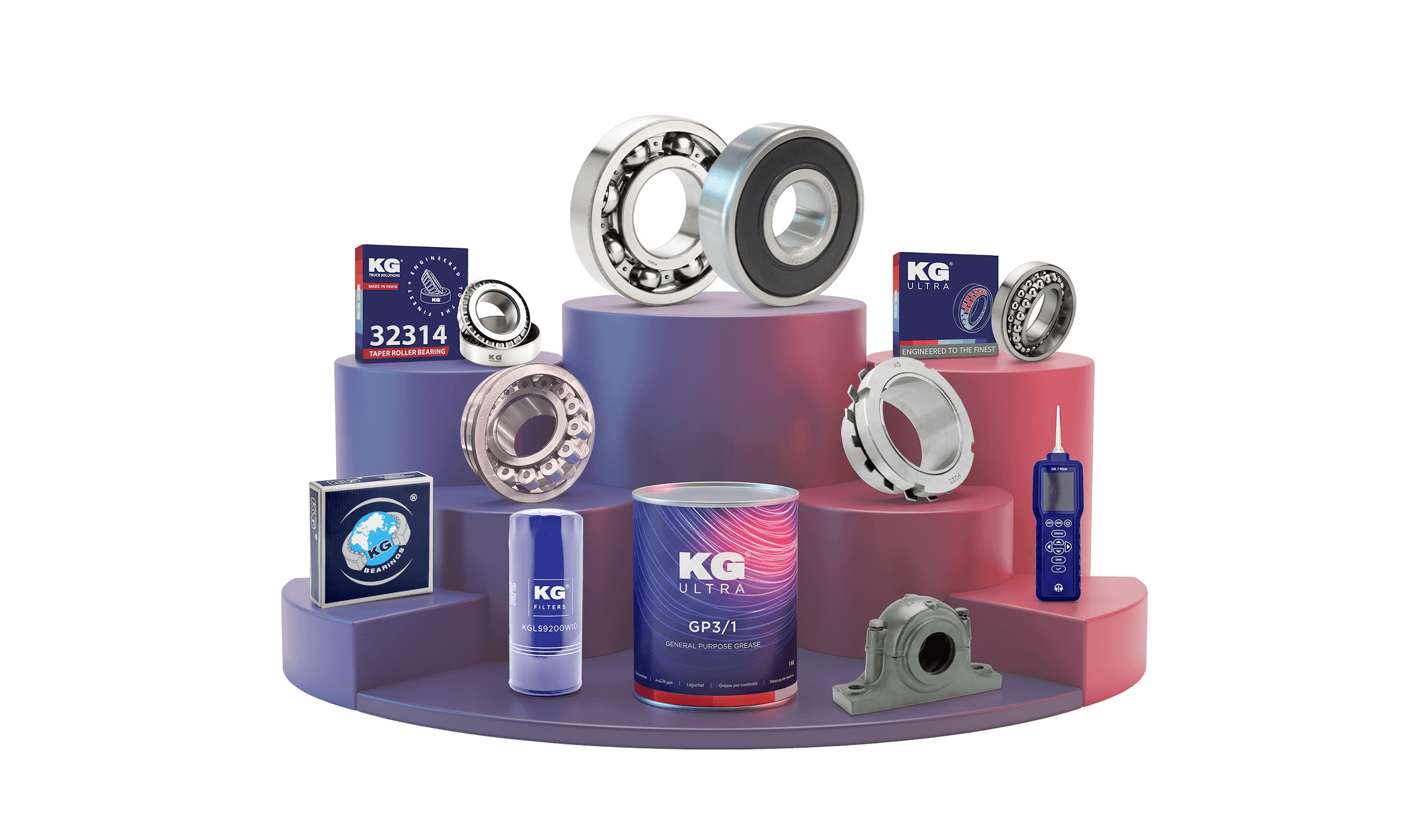

WIDE RANGE
TO CATER TO ALL YOUR
CUSTOMERS' NEEDS
TO CATER TO ALL YOUR
CUSTOMERS' NEEDS
5
LARGE AUTOMOTIVE AND
INDUSTRIAL RANGE
7
APPLICATION SPECIFIC
RANGES
6
BRAND VARIANTS TO
SUIT YOUR NEEDS
8
ABILITY TO QUICKLY
DEVELOP OUR RANGE
TO CATER TO ALL YOUR
CUSTOMERS' NEEDS
5
LARGE AUTOMOTIVE AND
INDUSTRIAL RANGE
6
BRAND VARIANTS TO
SUIT YOUR NEEDS
7
APPLICATION SPECIFIC
RANGES
8
ABILITY TO QUICKLY
DEVELOP OUR RANGE
BRAND IDENTITY AND GLOBAL RECOGNITION
ENSURING THAT YOU CAN SCALE AND GROW QUICKLY AND EFFICIENTLY
ENSURING THAT YOU CAN SCALE AND GROW QUICKLY AND EFFICIENTLY
9
STORIED LEGACY AND
STRONG BRAND IMAGE
11
STRONG VALUE
FOR MONEY
10
GLOBAL
PRESENCE
12
BEAUTIFUL AND
HIGH-QUALITY PACKAGING
ENSURING THAT YOU CAN SCALE AND GROW QUICKLY AND EFFICIENTLY
9
STORIED LEGACY ANDSTRONG
BRAND IMAGE
10
GLOBAL PRESENCE
11
STRONG VALUE
FOR MONEY
12
BEAUTIFUL AND HIGH-QUALITY
PACKAGING
UNMATCHED QUALITY
UNMATCHED QUALITY
FOR CONSISTENCY AND RELIABILITY IN ALL APPLICATIONS
FOR CONSISTENCY AND RELIABILITY IN ALL APPLICATIONS
1
LEADING QUALITY
CONTROL PRACTICES
3
TOP QUALITY
MATERIALS
2
HIGH MANUFACTURING
QUALITY
4
CONSISTENCY AND
RELIABILITY
FOR CONSISTENCY AND RELIABILITY IN ALL APPLICATIONS
1
LEADING QUALITY
CONTROL PRACTICES
2
HIGH MANUFACTURING
QUALITY
3
TOP QUALITY
MATERIALS
4
CONSISTENCY AND
RELIABILITY
WIDE RANGE
WIDE RANGE
TO CATER TO ALL YOUR
CUSTOMERS' NEEDS
TO CATER TO ALL YOUR
CUSTOMERS' NEEDS
5
LARGE AUTOMOTIVE AND
INDUSTRIAL RANGE
7
APPLICATION SPECIFIC
RANGES
6
BRAND VARIANTS TO
SUIT YOUR NEEDS
8
ABILITY TO QUICKLY
DEVELOP OUR RANGE
TO CATER TO ALL YOUR
CUSTOMERS' NEEDS
5
LARGE AUTOMOTIVE AND
INDUSTRIAL RANGE
6
BRAND VARIANTS TO
SUIT YOUR NEEDS
7
APPLICATION SPECIFIC
RANGES
8
ABILITY TO QUICKLY
DEVELOP OUR RANGE
BRAND IDENTITY AND
GLOBAL RECOGNITION
BRAND IDENTITY AND GLOBAL RECOGNITION
ENSURING THAT YOU CAN SCALE AND GROW QUICKLY AND EFFICIENTLY
ENSURING THAT YOU CAN SCALE AND GROW QUICKLY AND EFFICIENTLY
9
STORIED LEGACY AND
STRONG BRAND IMAGE
11
STRONG VALUE
FOR MONEY
10
GLOBAL
PRESENCE
12
BEAUTIFUL AND
HIGH-QUALITY PACKAGING
ENSURING THAT YOU CAN SCALE AND GROW QUICKLY AND EFFICIENTLY
9
STORIED LEGACY ANDSTRONG
BRAND IMAGE
10
GLOBAL PRESENCE
11
STRONG VALUE
FOR MONEY
12
BEAUTIFUL AND HIGH-QUALITY
PACKAGING
